HFA140NH60

Soft Recovery Diode

HFA140NH60 Features

* • Reduced RFI and EMI • Reduced Snubbing • Extensive Characterization of Recovery Parameters TM Ultrafast, Soft Recovery Diode LUG TERMINAL ANODE a d BASE CATHODE V R = 600V V F(typ.)

* = 1.3V IF(AV) = 140A Qrr (typ.) = 490nC IRRM(typ.) = 9.3A trr(typ.) = 39ns di(rec)M/dt (typ.)

* = 200A/

HFA140NH60 General Description

HEXFRED diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifies the calculations of losses in the operating conditions. The softness of the.

HFA140NH60 Datasheet (312.13 KB)

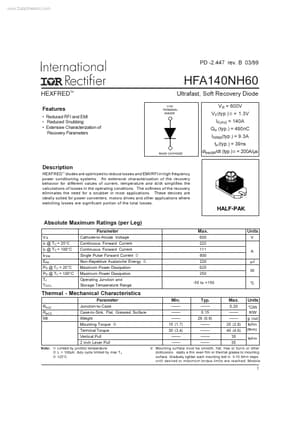

Preview of HFA140NH60 PDF

Datasheet Details

Part number:

HFA140NH60

Manufacturer:

International Rectifier

File Size:

312.13 KB

Description:

Soft recovery diode.
