HFA140NJ60C - HEXFRED Ultrafast/ Soft Recovery Diode

HFA140NJ60C Description

PD -2.458 rev.B 02/99 HFA140NJ60C HEXFRED .
HEXFRED diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems.

HFA140NJ60C Features

* • Reduced RFI and EMI • Reduced Snubbing • Extensive Characterization of Recovery Parameters TM Ultrafast, Soft Recovery Diode LUG TERMINAL ANODE 1 LUG TERMINAL ANODE 2 BASE COMMON CATHODE V R = 600V V F(typ. )
* = 1.2V IF(AV) = 140A Qrr (typ. ) = 340nC IRRM(typ. ) = 8.5A trr(typ. ) = 33ns di(rec)

HFA140NJ60C Applications

* These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses. TM TO-244AB Absolute Maximum Ratings (per Leg) Parameter VR IF @ TC = 25°C IF @ TC = 100°C IFSM EAS PD @ T C = 25°C PD @ TC = 100°C TJ TS

📥 Download Datasheet

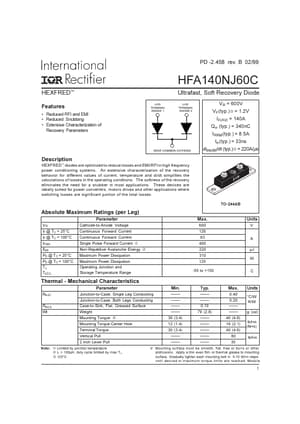

Preview of HFA140NJ60C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HFA140NJ60C
Manufacturer
International Rectifier
File Size
320.60 KB
Datasheet
HFA140NJ60C_InternationalRectifier.pdf
Description
HEXFRED Ultrafast/ Soft Recovery Diode
