HFA140MD60C - Soft Recovery Diode

HFA140MD60C Description

www.DataSheet4U.com PD - 40009 rev.A 01/99 HFA140MD60C HEXFRED .
HEXFRED diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems.

HFA140MD60C Features

* • Reduced RFI and EMI • Reduced Snubbing • Extensive Characterization of Recovery Parameters TM Ultrafast, Soft Recovery Diode LUG LUG LUG TERMINAL TERMINAL TERMINAL ANODE 1 CATHODE ANODE 2 Isolated Base VR = 600V VF (typ. )‚ = 1.2V IF(AV) = 140A Qrr (typ. ) = 360nC IRRM(typ. ) = 8.0A trr(typ. ) = 35

HFA140MD60C Applications

* These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses. TM Absolute Maximum Ratings (per Leg) Parameter VR IF @ TC = 25°C IF @ TC = 100°C IFSM PD @ T C = 25°C PD @ TC = 100°C TJ TSTG Cathode-to-

📥 Download Datasheet

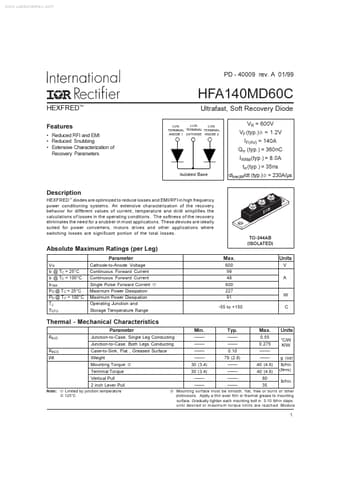

Preview of HFA140MD60C PDF
datasheet Preview Page 2 datasheet Preview Page 3
