HFA105NH60R - HEXFRED Ultrafast/ Soft Recovery Diode

HFA105NH60R Description

Previous Datasheet Index Next Data Sheet PD-2.443 HFA105NH60R HEXFRED .
HEXFRED diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems.

HFA105NH60R Features

* Reduced RFI and EMI
* Reduced Snubbing
* Extensive Characterization of Recovery Parameters TM Ultrafast, Soft Recovery Diode LUG TERMINAL CATHODE VR = 600V VF = 1.5V a d Qrr
* = 1200nC di(rec)M/dt
* = 240A/µs

HFA105NH60R Applications

* These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses. TM HALF-PAK Absolute Maximum Ratings Parameter VR IF @ TC = 25°C IF @ TC = 100°C IFSM IAS EAS PD @ TC = 25°C PD @ TC = 100°C TJ TSTG Catho

📥 Download Datasheet

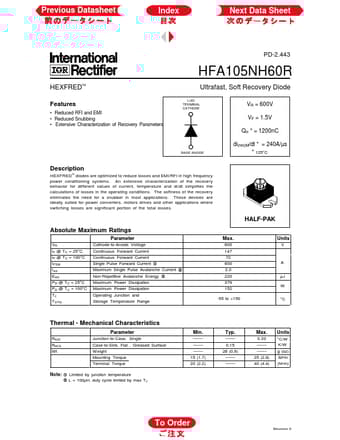

Preview of HFA105NH60R PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HFA105NH60R
Manufacturer
International Rectifier
File Size
282.68 KB
Datasheet
HFA105NH60R_InternationalRectifier.pdf
Description
HEXFRED Ultrafast/ Soft Recovery Diode
