HIP6002

Rectifier (PWM) Controller and Output Voltage Monitor

HIP6002 Features

* a 15MHz gain-bandwidth product and 6V/µs slew rate which enables high converter bandwidth for fast transient performance. The resulting PWM duty ratio ranges from 0% to 100%. The HIP6002 monitors the output voltage with a window comparator that tracks the DAC output and issues a Power Good signal wh

HIP6002 General Description

VSEN OCSET SS VID0 VID1 VID2 VID3 EN COMP 1 2 3 4 5 6 7 8 9 20 RT 19 OVP 18 VCC 17 LGATE 16 PGND 15 BOOT 14 UGATE 13 PHASE 12 PGOOD 11 GND VID0-3 (Pins 4-7) VID0-3 are the input pins to the 4-bit DAC. The states of these four pins program the internal voltage reference (DACOUT). The level of DACOUT.

HIP6002 Datasheet (211.98 KB)

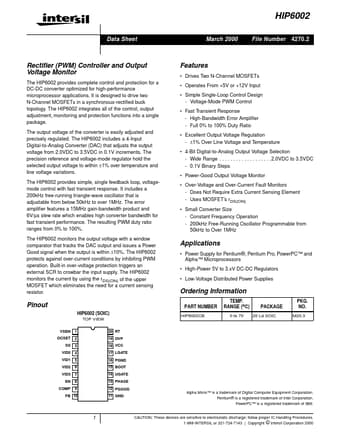

Preview of HIP6002 PDF

Datasheet Details

Part number:

HIP6002

Manufacturer:

Intersil Corporation

File Size:

211.98 KB

Description:

Rectifier (pwm) controller and output voltage monitor.
HIP6002 Data Sheet March 2000 File Number 4270.2 Rectifier (PWM) Controller and Output Voltage Monitor The HIP6002 provides complete control and prote.
