HIP6005B PWM Controller and Output Voltage Monitor

DATASHEET HIP6005B Buck Pulse-Width Modulator (PWM) Controller and Output Voltage Monitor FN4568 Rev 2.00 February 1999 The HIP6005B provides complete control and protection for a DC-DC converter optimized for high-performance microprocessor applications. It is designed to drive an N-Channel MOSFET in a standard buck topology. The HIP6005B integrates all of the control, output adjustment, monitoring and protection functions into a single package. The output voltage of the converter is easily .

HIP6005B Features

* a 15MHz gain-bandwidth product and 6V/s slew rate which enables high converter bandwidth for fast transient performance. The resulting PWM duty ratio ranges from 0% to 100%. The HIP6005B monitors the output voltage with a window comparator that tracks the DAC output and issues a Power Good signal w

HIP6005B Datasheet (739.31 KB)

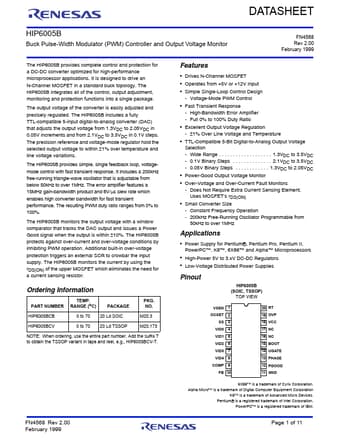

HIP6005B Datasheet Preview — Preview of HIP6005B PDF

Datasheet Details

Part number:

HIP6005B

Manufacturer:

Renesas ↗

File Size:

739.31 KB

Description:

Pwm controller and output voltage monitor.
