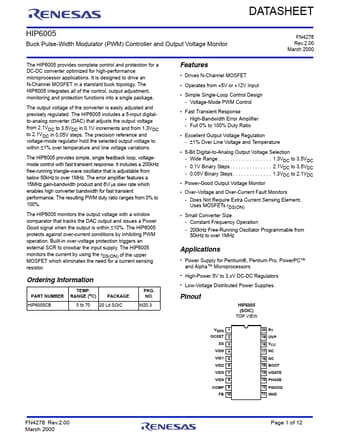

DATASHEET HIP6005 Buck Pulse-Width Modulator (PWM) Controller and Output Voltage Monitor FN4276 Rev.2.00 March 2000 The HIP6005 provides complete control and protection for a DC-DC converter optimized for high-performance microprocessor applications. It is designed to drive an N-Channel MOSFET in a standard buck topology. The HIP6005 integrates all of the control, output adjustment, monitoring and protection functions into a single package. The output voltage of the converter is easily adjust.

HIP6005 Features

* a 15MHz gain-bandwidth product and 6V/s slew rate which enables high converter bandwidth for fast transient performance. The resulting PWM duty ratio ranges from 0% to 100%. The HIP6005 monitors the output voltage with a window comparator that tracks the DAC output and issues a Power Good signal wh
