HS-246RH, Radiation Hardened Triple Line(party-Line) Transmitter

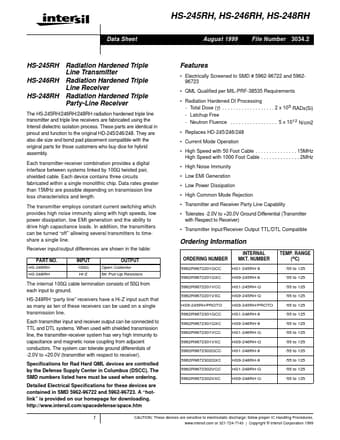

HS-245RH, HS-246RH, HS-248RH Data Sheet August 1999 File Number 3034.2 HS-245RH HS-246RH HS-248RH Radiation Hardened Triple Line Transmitter Radiati.

datasheet Preview Page 1 from Datasheet4u.com

HS-246RH_IntersilCorporation.pdf

HS-246RH Datasheet Preview — Preview of HS-246RH PDF

Datasheet Details

Part number:

HS-246RH

Manufacturer:

Intersil Corporation

File Size:

110.20 KB

Description:

Radiation Hardened Triple Line(party-Line) Transmitter

Features

* Electrically Screened to SMD # 5962-96722 and 596296723
* QML Qualiﬁed per MIL-PRF-38535 Requirements
* Radiation Hardened DI Processing - Total Dose (γ)
* . . . . 2 x 105 RADs(Si) - Latchup Free - Neutron Fluence
* . . 5 x

Applications

* NOTES: Input: TTLH ≤ 10ns TTHL ≤ 10ns pw = 500ns f = 1MHz VOUT IOUT = 50Ω OPEN (≈3.2V) φ1 IN φ2 IN 0V OPEN (≈3.2V) 0V VCC = +5V φ1 D. U. T. TPHL φ1 OUT TPLH ≈0.15V (≈3mA) 0V VOUT φ1 50Ω 1% TRANSMITTER OUT VOUT φ2 φ2 50Ω 1% ≈0.15V (≈3mA) φ2 OUT 0V All timing measurements referenced to 50%
