HS-26C32EH Radiation Hardened Quad Differential Line Receiver

(Total Ionizing Dose) (RoHS COMPLIANT) PKG. DWG. # CARRIER TYPE TEMP. RANGE 5962F9568901QEC HS1-26C32RH-8 HDR to 300krad(Si) 16 Ld SBDIP D16.3 Tube -55 to +125°C 5962F9568901QXC HS9-26C32RH-8 16 Ld FLATPACK K16.A Tray 5962F9568901VEC HS1-26C32RH-Q 16 Ld SBDIP D16.3 Tube 5962F9568901.

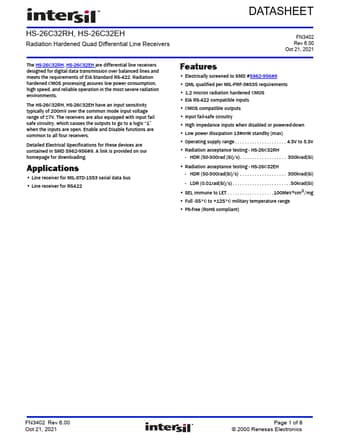

DATASHEET HS-26C32RH, HS-26C32EH Radiation Hardened Quad Differential Line Receivers FN3402 Rev 6.00 Oct 21, 2021 The HS-26C32RH, HS-26C32EH are differential line receivers designed for digital data transmission over balanced lines and meets the requirements of EIA Standard RS-422. Radiation hardened CMOS processing assures low power consumption, high speed, and reliable operation in the most severe radiation environments. The HS-26C32RH, HS-26C32EH have an input sensitivity typically of 200m.

HS-26C32EH Features

* Electrically screened to SMD #5962-95689

* QML qualified per MIL-PRF-38535 requirements

* 1.2 micron radiation hardened CMOS

* EIA RS-422 compatible inputs

* CMOS compatible outputs

* Input fail-safe circuitry

* High impedance inputs when dis

HS-26C32RH_IntersilCorporation.pdf

HS-26C32EH Datasheet Preview — This datasheet PDF includes multiple part numbers: HS-26C32EH, HS-26C32RH. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HS-26C32EH, HS-26C32RH

Manufacturer:

Intersil

File Size:

406.65 KB

Description:

Radiation hardened quad differential line receiver.

Note:

This datasheet PDF includes multiple part numbers: HS-26C32EH, HS-26C32RH.
Please refer to the document for exact specifications by model.
