HS-26C32RH - Radiation Hardened Quad Differential Line Receiver

Product Overview

Intersil Corporation

Datasheet Details

Part number	HS-26C32RH
Manufacturer	Intersil Corporation
File Size	406.65 KB
Description	Radiation Hardened Quad Differential Line Receiver
Datasheet	HS-26C32RH Datasheet

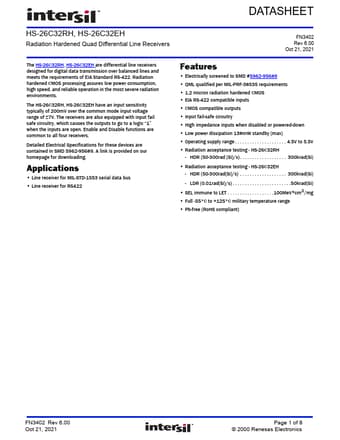

Additional preview pages of the HS-26C32RH datasheet.

Product details

Description

(Total Ionizing Dose) (RoHS COMPLIANT) PKG.DWG.# CARRIER TYPE TEMP.RANGE 5962F9568901QEC HS1-26C32RH-8 HDR to 300krad(Si) 16 Ld SBDIP D16.3 Tube -55 to +125°C 5962F9568901QXC HS9-26C32RH-8 16 Ld FLATPACK K16.A Tray 5962F9568901VEC HS1-26C32RH-Q 16 Ld SBDIP D16.3 Tube 5962F9568901VXC HS9-26C32RH-Q 16 Ld FLATPACK K16.A Tray 5962F9568901V9A HS0-26C32RH-Q (Note 3) Die N/A N/A 5962F9568901VYC HS9G-26C32RH-Q (Notes 4, 5) 16 Ld FLATPACK K16.A Tray N/A HS0-26C32RH/SAMPLE

Features

Electrically screened to SMD #5962-95689.
QML qualified per MIL-PRF-38535 requirements.
1.2 micron radiation hardened CMOS.
EIA RS-422 compatible inputs.
CMOS compatible outputs.
Input fail-safe circuitry.
High impedance inputs when disabled or powered-down.
Low power dissipation 138mW standby (max).
Operating supply range.
. 4.5V to 5.5V.
Radiation acceptance testing - H.
