HS-26CLV31RH - Radiation Hardened 3.3V Quad Differential Line Drivers

Product Overview

Intersil

Datasheet Details

Part number	HS-26CLV31RH
Manufacturer	Intersil
File Size	577.72 KB
Description	Radiation Hardened 3.3V Quad Differential Line Drivers
Datasheet	HS-26CLV31RH Datasheet

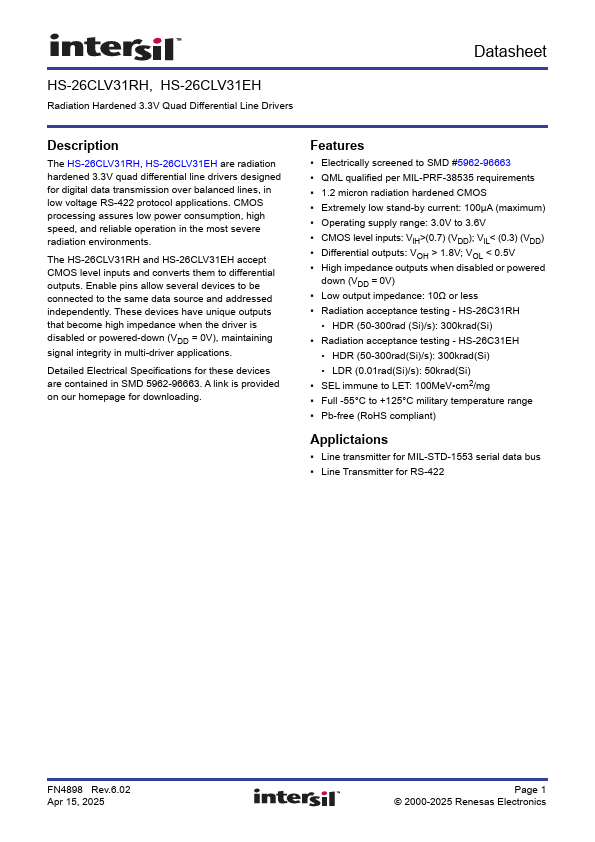

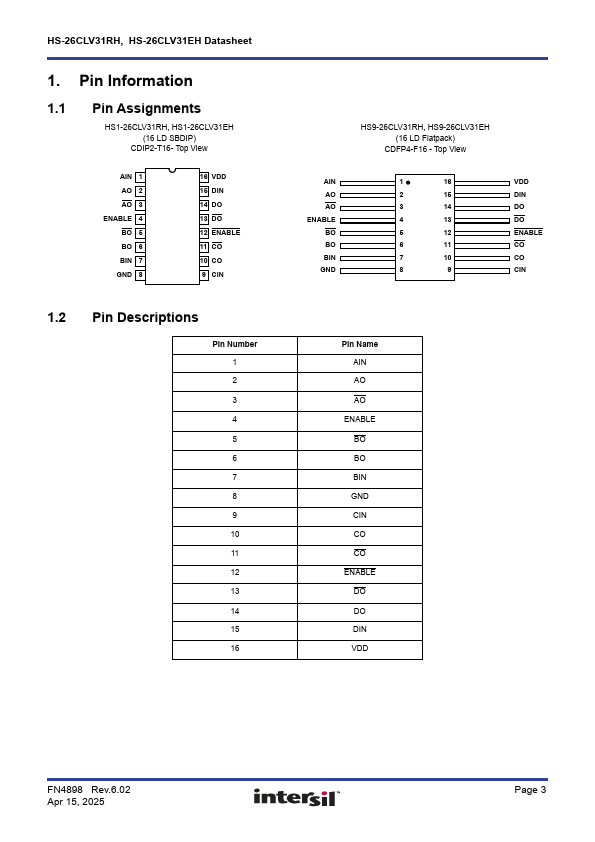

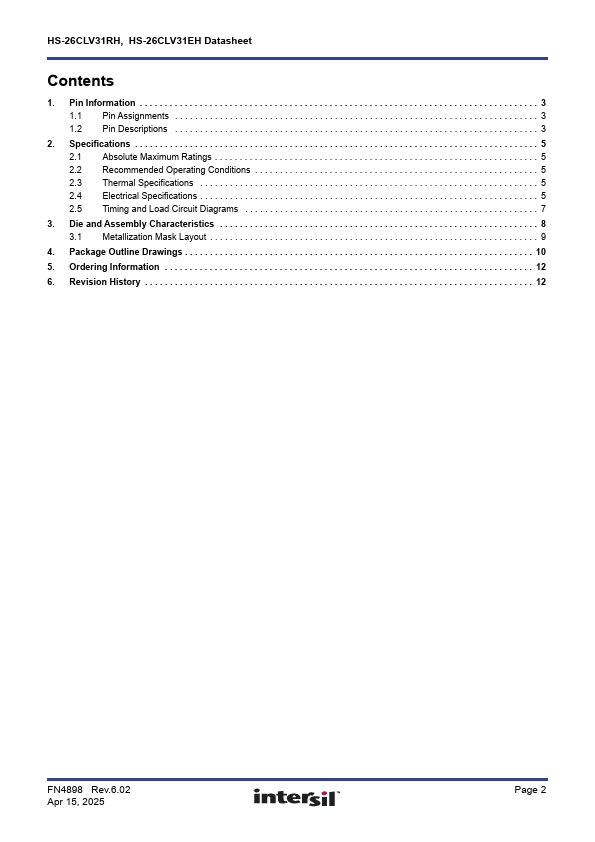

Additional preview pages of the HS-26CLV31RH datasheet.

Product details

Description

The HS-26CLV31RH, HS-26CLV31EH are radiation hardened 3.3V quad differential line drivers designed for digital data transmission over balanced lines, in low voltage RS-422 protocol applications.

Features

Electrically screened to SMD #5962-96663.
QML qualified per MIL-PRF-38535 requirements.
1.2 micron radiation hardened CMOS.
Extremely low stand-by current: 100µA (maximum).
Operating supply range: 3.0V to 3.6V.
CMOS level inputs: VIH>(0.7) (VDD); VIL< (0.3) (VDD).
Differential outputs: VOH > 1.8V; VOL < 0.5V.
High impedance outputs when disabled or powered down (VDD = 0V).
Low output impedance: 10Ω or less.
Radiation acceptance testing - HS-26C3.
