HS-26CT31RH - Radiation Hardened Quad Differential Line Driver

Intersil Corporation

The HS-26CT31RH by Intersil Corporation is a Radiation Hardened Quad Differential Line Driver. Below is the official datasheet preview.

📥 Download Datasheet

HS-26CT31RH Radiation Hardened Quad Differential Line Driver by Intersil Corporation - Datasheet Preview — Official preview page of the **HS-26CT31RH** Radiation Hardened Quad Differential Line Driver datasheet (Intersil Corporation).

Datasheet Details

Part number	HS-26CT31RH
Manufacturer	Intersil Corporation
File Size	430.46 KB
Description	Radiation Hardened Quad Differential Line Driver
Datasheet	HS-26CT31RH_IntersilCorporation.pdf

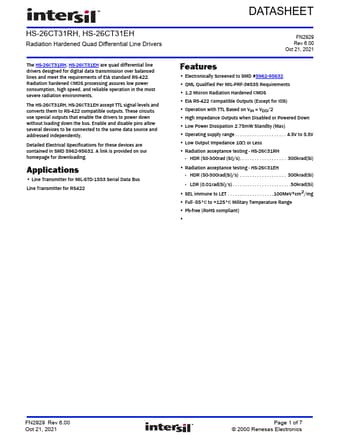

Additional preview pages of the HS-26CT31RH datasheet.

HS-26CT31RH Product details

Description

(Total Ionizing Dose) (RoHS Compliant) Package Drawing Carrier Type Temp.Range 5962F9563201QEC HS1-26CT31RH-8 HDR to 300krad(Si) 16 LD SBDIP D16.3 Tube -55 to +125°C 5962F9563201QXC HS9-26CT31RH-8 16 LD Flatpack K16.A Tray 5962F9563201VEC HS1-26CT31RH-Q 16 LD SBDIP D16.3 Tube 5962F9563201VXC HS9-26CT31RH-Q 16 LD Flatpack K16.A Tray 5962F9563201V9A HS0-26CT31RH-Q (Note 3) Die N/A N/A 5962F9563201VYC HS9G-26CT31RH-Q (Note 4) 16 LD Flatpack K16.A Tray N/A HS0-26CT31RH/S

Features

Electronically Screened to SMD #5962-95632.
QML Qualified Per MIL-PRF-38535 Requirements.
1.2 Micron Radiation Hardened CMOS.
EIA RS-422 Compatible Outputs (Except for IOS).
Operation with TTL Based on VIH = VDD/2.
High Impedance Outputs when Disabled or Powered Down.
Low Power Dissipation 2.75mW Standby (Max).
Operating supply range.
. 4.5V to 5.5V.
Low Output Impedance 10 or Le.
