HS-26CT32EH Radiation Hardened Quad Differential Line Receivers

(Total Ionizing Dose) (RoHS COMPLIANT) PKG. DWG. # CARRIER TYPE TEMP. RANGE 5962F9563101QEC HS1-26CT32RH-8 HDR to 300krad(Si) 16 LD SBDIP D16.3 Tube -55 to +125°C 5962F9563101QXC HS9-26CT32RH-8 16 LD Flatpack K16.A Tray 5962F9563101VEC HS1-26CT32RH-Q 16 LD SBDIP D16.3 Tube 5962F9563.

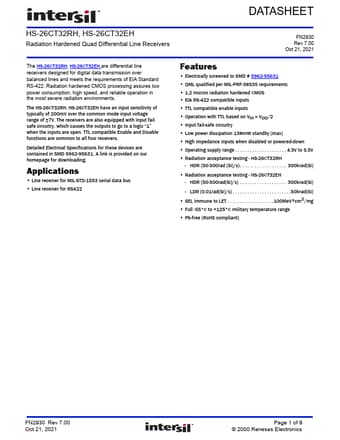

DATASHEET HS-26CT32RH, HS-26CT32EH Radiation Hardened Quad Differential Line Receivers FN2930 Rev 7.00 Oct 21, 2021 The HS-26CT32RH, HS-26CT32EH are differential line receivers designed for digital data transmission over balanced lines and meets the requirements of EIA Standard RS-422. Radiation hardened CMOS processing assures low power consumption, high speed, and reliable operation in the most severe radiation environments. The HS-26CT32RH, HS-26CT32EH have an input sensitivity of typicall.

HS-26CT32EH Features

* Electrically screened to SMD # 5962-95631

* QML qualified per MIL-PRF-38535 requirements

* 1.2 micron radiation hardened CMOS

* EIA RS-422 compatible inputs

* TTL compatible enable inputs

* Operation with TTL based on VIH = VDD/2

* Input fail

HS-26CT32EH Datasheet (395.52 KB)

HS-26CT32EH Datasheet Preview — Preview of HS-26CT32EH PDF

Datasheet Details

Part number:

HS-26CT32EH

Manufacturer:

Intersil

File Size:

395.52 KB

Description:

Radiation hardened quad differential line receivers.
