HS-26CT31EH Radiation Hardened Quad Differential Line Driver

(Total Ionizing Dose) (RoHS Compliant) Package Drawing Carrier Type Temp. Range 5962F9563201QEC HS1-26CT31RH-8 HDR to 300krad(Si) 16 LD SBDIP D16.3 Tube -55 to +125°C 5962F9563201QXC HS9-26CT31RH-8 16 LD Flatpack K16.A Tray 5962F9563201VEC HS1-26CT31RH-Q 16 LD SBDIP D16.3 Tube 5962F95.

HS-26CT31RH, HS-26CT31EH Radiation Hardened Quad Differential Line Drivers The HS-26CT31RH, HS-26CT31EH are quad differential line drivers designed for digital data transmission over balanced lines and meet the requirements of EIA standard RS-422. Radiation hardened CMOS processing assures low power consumption, high speed, and reliable operation in the most severe radiation environments. The HS-26CT31RH, HS-26CT31EH accept TTL signal levels and converts them to RS-422 compatible outputs. These .

HS-26CT31EH Features

* Electronically Screened to SMD #5962-95632

* QML Qualified Per MIL-PRF-38535 Requirements

* 1.2 Micron Radiation Hardened CMOS

* EIA RS-422 Compatible Outputs (Except for IOS)

* Operation with TTL Based on VIH = VDD/2

* High Impedance Outputs when Di

HS-26CT31EH Datasheet (430.46 KB)

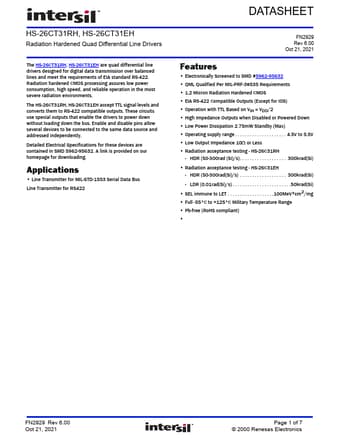

HS-26CT31EH Datasheet Preview — Preview of HS-26CT31EH PDF

Datasheet Details

Part number:

HS-26CT31EH

Manufacturer:

Intersil

File Size:

430.46 KB

Description:

Radiation hardened quad differential line driver.
