HS-201HSEH, HS-201HSRH Datasheet - Intersil

HS-201HSEH BiCMOS Analog Switch

(Total Ionizing Dose) (RoHS COMPLIANT) PKG. DWG. # TEMP. RANGE 5962F9961801VEC HS1-201HSRH-Q HDR to 300krad(Si) 16 Ld SBDIP D16.3 -55 to +125°C 5962F9961802VEC HS1-201HSEH-Q HDR to 300krad(Si) LDR to 50krad(Si) 5962F9961801QEC HS1-201HSRH-8 HDR to 300krad(Si) 5962F9961801VXC HS9-201HSRH.
HS-201HSRH, HS-201HSEH Radiation Hardened High Speed, Quad SPST, BiCMOS Analog Switch DATASHEET The HS-201HSRH and HS-201HSEH are monolithic BiCMOS analog switches featuring power-off high input impedance, very fast switching speeds and low ON-resistance. Fabrication on our DI RSG process ensures SEL immunity and only very slight low dose rate sensitivity (ELDRS). These Class V/Q devices are tested and guaranteed for 300krad(Si) total dose performance. Power-off high input impedance enables th.

HS-201HSRH_IntersilCorporation.pdf

This datasheet PDF includes multiple part numbers: HS-201HSEH, HS-201HSRH. Please refer to the document for exact specifications by model.

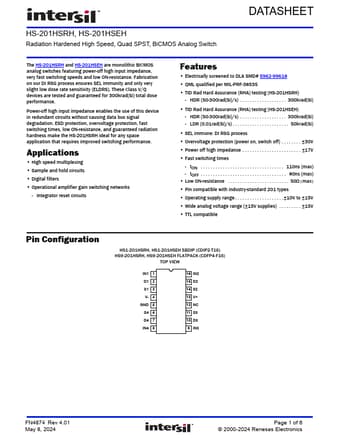

HS-201HSEH Datasheet Preview Page 2 HS-201HSEH Datasheet Preview Page 3

Datasheet Details

Part number:

HS-201HSEH, HS-201HSRH

Manufacturer:

Intersil

File Size:

360.92 KB

Description:

Bicmos analog switch.

Note:

This datasheet PDF includes multiple part numbers: HS-201HSEH, HS-201HSRH.
Please refer to the document for exact specifications by model.
