HS8-RTX2010RH Radiation Hardened Real Time Express Microcontroller

SIGNAL OUTPUTS NEW BOOT MR/W UDS LDS GIO GR/W PCLK TCLK INTA 60 61 63 59 58 16 15 62 2 3 1 1 1 1 1 1 1 0 0 0 NEW: A HIGH on this pin indicates that an Instruction Fetch is in progress. BOOT: A HIGH on this pin indicates that Boot Memory is being accessed. This pin can be set or reset by accessing b.

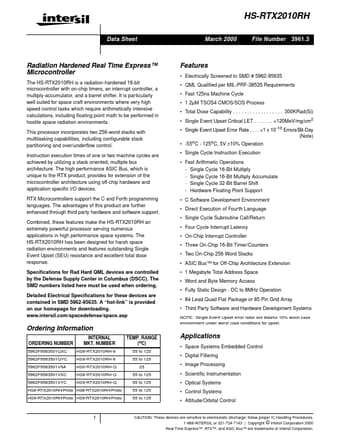

HS-RTX2010RH Data Sheet March 2000 File Number 3961.3 Radiation Hardened Real Time Express™ Microcontroller The HS-RTX2010RH is a radiation-hardened 16-bit microcontroller with on-chip timers, an interrupt controller, a multiply-accumulator, and a barrel shifter. It is particularly well suited for space craft environments where very high speed control tasks which require arithmetically intensive calculations, including ﬂoating point math to be performed in hostile space radiation environments. .

HS8-RTX2010RH Features

* make the HS-RTX2010RH an extremely powerful processor serving numerous applications in high performance space systems. The HS-RTX2010RH has been designed for harsh space radiation environments and features outstanding Single Event Upset (SEU) resistance and excellent total dose response. Speciﬁcatio
