HS800 - CRYSTAL CLOCK OSCILLATORS

HS800 Description

CRYSTAL CLOCK OSCILLATORS ECL Data Sheet 9205A Rev.K HS-800/810 Series .
The HS-800/810 Series of quartz crystal oscillators provide MECL 10K and 10KH series compatible signals in industry standard four-pin DIP hermetic pac.

HS800 Features

* Wide frequency range
* 15.0MHz to 250.0MHz
* User specified tolerance available
* Will withstand vapor phase temperatures of 253°C for 4 minutes maximum
* Space-saving alternative to discrete component oscillators
* High shock resistance, to 3000g

📥 Download Datasheet

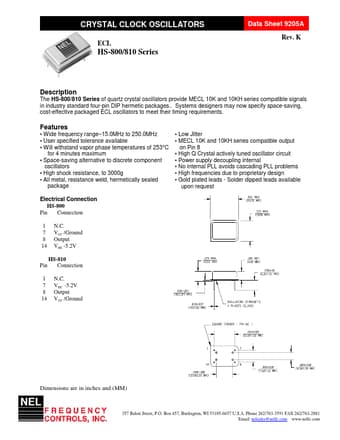

Preview of HS800 PDF
datasheet Preview Page 2

Datasheet Details

Part number
HS800
Manufacturer
ETC
File Size
257.68 KB
Datasheet
HS800_ETC.pdf
Description
CRYSTAL CLOCK OSCILLATORS
