HS817B, HS817, Optocoupler

HS817, HS817G, HS817B, HS817BG www.vishay.com Vishay Semiconductors Optocoupler with Transistor Output .
The HS817 series consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 4-lead plastic dual inline package.

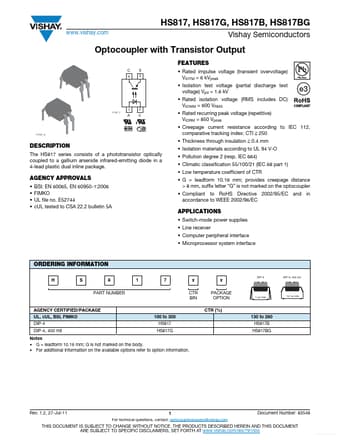

datasheet Preview Page 1 from Datasheet4u.com

HS817-Vishay.pdf

HS817B Datasheet Preview — This datasheet PDF includes multiple part numbers: HS817B, HS817. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HS817B, HS817

Manufacturer:

Vishay ↗

File Size:

180.79 KB

Description:

Optocoupler

Note:

This datasheet PDF includes multiple part numbers: HS817B, HS817.
Please refer to the document for exact specifications by model.

Features

* C 4 E 3
* Rated impulse voltage (transient overvoltage) VIOTM = 6 kVpeak
* Isolation test voltage (partial discharge test voltage) Vpd = 1.6 kV
* Rated isolation voltage (RMS includes DC) VIOWM = 600 VRMS
* Rated recurring peak voltage (repetitive) VIORM = 850 Vpeak

Applications

* Switch-mode power supplies
* Line receiver
* Computer peripheral interface
* Microprocessor system interface ORDERING INFORMATION H S 8 PART NUMBER 1 7 x CTR BIN x PACKAGE OPTION CTR (%) 100 to 300 HS817 HS817G 130 to 260 HS817B HS817BG DIP-# DIP-#, 400 mil 7.62 m
