HS817G

Optocoupler

HS817G Features

* C 4 E 3

* Rated impulse voltage (transient overvoltage) VIOTM = 6 kVpeak

* Isolation test voltage (partial discharge test voltage) Vpd = 1.6 kV

* Rated isolation voltage (RMS includes DC) VIOWM = 600 VRMS

* Rated recurring peak voltage (repetitive) VIORM = 850 Vpeak

HS817G General Description

The HS817 series consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 4-lead plastic dual inline package. AGENCY APPROVALS

*

*

*

* BSI: EN 60065, EN 60950-1:2006 FIMKO UL file no. E52744 cUL tested to CSA 22.2 bulletin 5A.

HS817G Datasheet (180.79 KB)

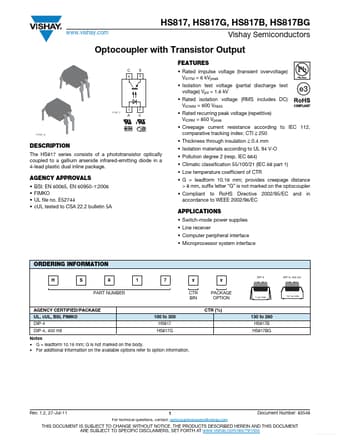

Preview of HS817G PDF

Datasheet Details

Part number:

HS817G

Manufacturer:

Vishay ↗

File Size:

180.79 KB

Description:

Optocoupler.
