HUF76633S3S - N-Channel MOSFET

Intersil Corporation

📥 Download Datasheet

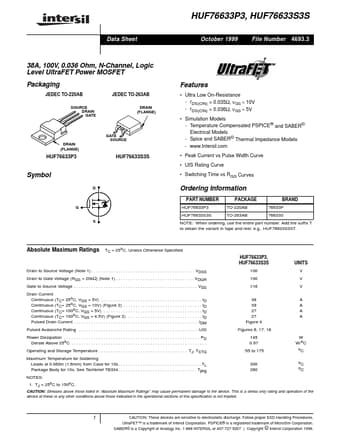

HUF76633S3S Datasheet Preview — Preview of HUF76633S3S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: HUF76633S3S
Manufacturer: Intersil Corporation
File Size: 337.88 KB
Datasheet: HUF76633S3S_IntersilCorporation.pdf
Description: N-Channel MOSFET

HUF76633S3S Product details

Features

JEDEC TO-263AB DRAIN (FLANGE).
Ultra Low On-Resistance - rDS(ON) = 0.035Ω, VGS = 10V - rDS(ON) = 0.036Ω, VGS = 5V.
Simulation Models - Temperature Compensated PSPICE® and SABER© Electrical Models - Spice and SABER© Thermal Impedance Models - www. Intersil. com.
Peak Current vs Pulse Width Curve.
UIS Rating Curve GATE SOURCE DRAIN (FLANGE) HUF76633P3 HUF76633S3S Symbol D.
Switching Time vs RGS Curves Ordering Information PART NUMBER.
