HUF76639S3ST-F085 - N-Channel Power MOSFET

ON Semiconductor

📥 Download Datasheet

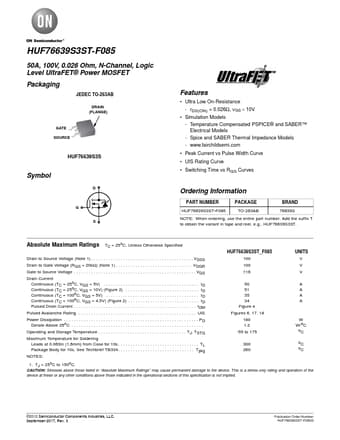

HUF76639S3ST-F085 Datasheet Preview — Preview of HUF76639S3ST-F085 PDF

datasheet Preview Page 2

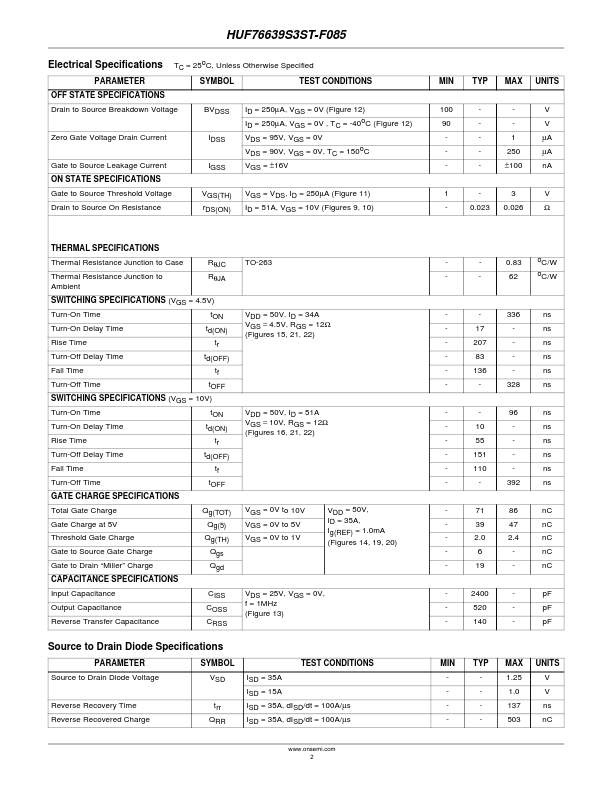

datasheet Preview Page 3

Datasheet Details

Part number: HUF76639S3ST-F085
Manufacturer: ON Semiconductor ↗
File Size: 331.34 KB
Datasheet: HUF76639S3ST-F085-ONSemiconductor.pdf
Description: N-Channel Power MOSFET

HUF76639S3ST-F085 Product details

Features

Ultra Low On-Resistance - rDS(ON) = 0.026Ω, VGS = 10V.
Simulation Models - Temperature Compensated PSPICE® and SABER™ Electrical Models - Spice and SABER Thermal Impedance Models - www. fairchildsemi. com.
Peak Current vs Pulse Width Curve.
UIS Rating Curve.
Switching Time vs RGS Curves Ordering Information PART NUMBER.
