HUF76633S3S - N-Channel MOSFET

Fairchild Semiconductor

📥 Download Datasheet

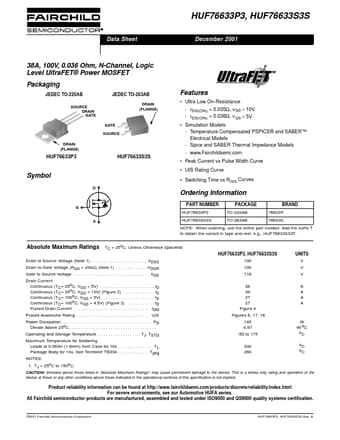

HUF76633S3S Datasheet Preview — Preview of HUF76633S3S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: HUF76633S3S
Manufacturer: Fairchild Semiconductor
File Size: 218.32 KB
Datasheet: HUF76633S3S_FairchildSemiconductor.pdf
Description: N-Channel MOSFET

HUF76633S3S Product details

Features

Ultra Low On-Resistance - rDS(ON) = 0.035Ω, VGS = 10V - rDS(ON) = 0.036Ω, VGS = 5V.
Simulation Models - Temperature Compensated PSPICE® and SABER™ Electrical Models - Spice and SABER Thermal Impedance Models - www. Fairchildsemi. com.
Peak Current vs Pulse Width Curve.
UIS Rating Curve.
Switching Time vs RGS Curves HUF76633P3 HUF76633S3S Symbol D Ordering Information G PART NUMBER HUF76633P3 S.
