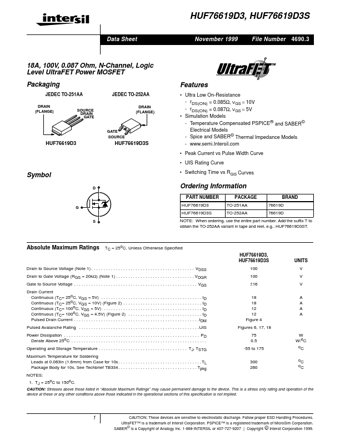

HUF76619D3 Datasheet Preview — Preview of HUF76619D3 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: HUF76619D3
Manufacturer: Intersil Corporation
File Size: 105.66 KB
Datasheet: HUF76619D3_IntersilCorporation.pdf
Description: N-Channel MOSFET

HUF76619D3 Product details

Features

Ultra Low On-Resistance - rDS(ON) = 0.085Ω, VGS = 10V - rDS(ON) = 0.087Ω, VGS = 5V.
Simulation Models - Temperature Compensated PSPICE® and SABER© Electrical Models - Spice and SABER© Thermal Impedance Models - www. semi. Intersil. com.
Peak Current vs Pulse Width Curve.
UIS Rating Curve.
Switching Time vs RGS Curves Ordering Information PART NUMBER.
