HUF76629D3ST-F085

N-Channel Power MOSFET

ON Semiconductor

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	onsemi	HUF76629D3ST-F085	HUF76629D3ST-F085	MOSFET N-CH 100V 20A TO252	DigiKey	0	0	$0	🛒 Buy Now

📥 Download PDF (464.03 KB)

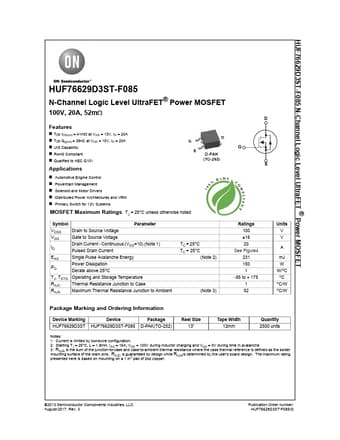

HUF76629D3ST-F085 Datasheet Preview Page 1 — Preview of HUF76629D3ST-F085 Datasheet

Datasheet Details

Part number:

HUF76629D3ST-F085

Manufacturer:

ON Semiconductor ↗

File Size:

464.03 KB

Download:

📄 Download HUF76629D3ST-F085 Datasheet PDF

Description:

N-channel power mosfet.
HUF76629D3ST-F085 N-Channel Logic Level UltraFET ® Power MOSFET HUF76629D3ST-F085 N-Channel Logic L.
evel UltraFET® Power MOSFET 100V, 20A, 52mΩ Features * Typ rDS(on) = 41mΩ at VGS = 10V, ID = 20A * .

✔ HUF76629D3ST-F085 Features

Typ rDS(on) = 41mΩ at VGS = 10V, ID = 20A
Typ Qg(tot) = 39nC at VGS = 10V, ID = 20A
UIS Capability
RoHS Compliant
Qualified to AEC Q101 Applications
Automotiv

✔ HUF76629D3ST-F085 Application

Automotive Engine Control
Powertrain Management
Solenoid and Motor Drivers
Distributed Power Archite
