ICM7243

LED Display Decoder Driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Renesas Electronics Corporation ICM7243BIPLZ IC LED DRIVER LINEAR 30MA 40DIP DigiKey 0 0
$0

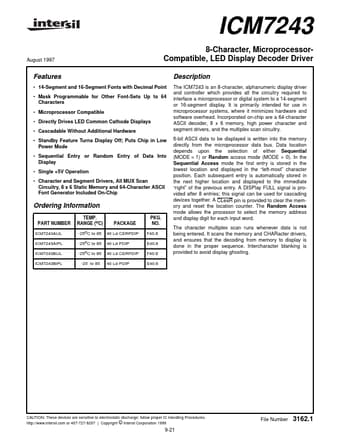

ICM7243 Datasheet (116.23 KB)

Preview of ICM7243 PDF Datasheet

Datasheet Details

Part number:

ICM7243

Manufacturer:

Intersil Corporation

File Size:

116.23 KB

Description:

Led display decoder driver.

ICM7243 Features

* 14-Segment and 16-Segment Fonts with Decimal Point

* Mask Programmable for Other Font-Sets Up to 64 Characters

* Microprocessor Compatible

* Directly Drives LED Common Cathode Displays

* Cascadable Without Additional Hardware

* Standby Feature Turns

ICM7243 General Description

The ICM7243 is an 8-character, alphanumeric display driver and controller which provides all the circuitry required to interface a microprocessor or digital system to a 14-segment or 16-segment display. It is primarily intended for use in microprocessor systems, where it minimizes hardware and softw.
