IS82C87H

CMOS Octal Inverting Bus Transceiver

IS82C87H Features

* Full Eight Bit Bi-Directional Bus Interface

* Industry Standard 8287 Compatible Pinout

* High Drive Capability - B Side IOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20mA - A Side IOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12mA

IS82C87H General Description

The Intersil 82C87H is a high performance CMOS Octal Transceiver manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). The 82C87H provides a full eight-bit bi-directional bus interface in a 20 pin package. The Transmit (T) control determines the data direction. The active low.

IS82C87H Datasheet (94.44 KB)

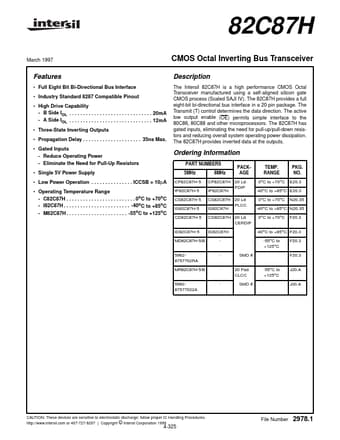

Preview of IS82C87H PDF

Datasheet Details

Part number:

IS82C87H

Manufacturer:

Intersil Corporation

File Size:

94.44 KB

Description:

Cmos octal inverting bus transceiver.
