IS82C82

CMOS Octal Latching Bus Driver

IS82C82 Features

* Full Eight-Bit Parallel Latching Buffer

* Bipolar 8282 Compatible

* Three-State Noninverting Outputs

* Propagation Delay . . . . . . . . . . . . . . . . . . . . . 35ns Max.

* Gated Inputs: - Reduce Operating Power - Eliminate the Need for Pull-Up Resistors

IS82C82 General Description

The Intersil 82C82 is a high performance CMOS Octal Latching Buffer manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). The 82C82 provides an eight-bit parallel latch/buffer in a 20 pin package. The active high strobe (STB) input allows transparent transfer of data and latc.

IS82C82 Datasheet (103.22 KB)

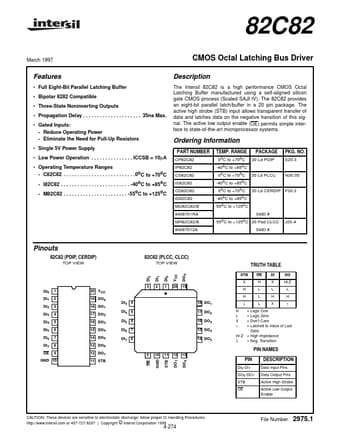

Preview of IS82C82 PDF

Datasheet Details

Part number:

IS82C82

Manufacturer:

Intersil Corporation

File Size:

103.22 KB

Description:

Cmos octal latching bus driver.
