IS82C86H-5 - CMOS Octal Bus Transceiver

Intersil Corporation

The IS82C86H-5 by Intersil Corporation is a CMOS Octal Bus Transceiver. Below is the official datasheet preview.

Datasheet Details

Part number	IS82C86H-5
Manufacturer	Intersil Corporation
File Size	109.17 KB
Description	CMOS Octal Bus Transceiver
Datasheet	IS82C86H-5_IntersilCorporation.pdf

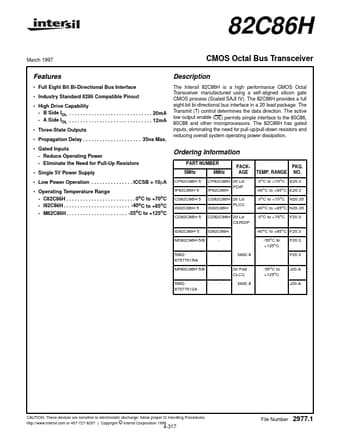

Additional preview pages of the IS82C86H-5 datasheet.

The Intersil 82C86H is a high performance CMOS Octal Transceiver manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV).

Full Eight Bit Bi-Directional Bus Interface.
Industry Standard 8286 Compatible Pinout.
High Drive Capability - B Side IOL.
20mA - A Side IOL.
12mA.
Three-State Outputs.
Propagation Delay.
. 35ns Max.
Gated Inputs - Reduce Operating Power - Eliminate the Need for Pull-Up Resistors.
Single 5V Po.
