FRM9140H

P-Channel Power MOSFET

Intersil

FRM9140H Features

* 11A, -100V, RDS(on) = 0.300Ω

* Second Generation Rad Hard MOSFET Results From New Design Concepts

* Gamma Meets Pre-Rad Speciﬁcations to 100KRAD(Si) Deﬁned End Point Specs at 300KRAD(Si) and 1000KRAD(Si) Performance Permits Limited Use to 3000KRAD(Si) Survives 3E9RAD(Si)/se

FRM9140H General Description

Intersil has designed a series of SECOND GENERATION hardened power MOSFETs of both N and P channel enhancement types with ratings from 100V to 500V, 1A to 60A, and on resistance as low as 25mΩ. Total dose hardness is offered at 100K RAD(Si) and 1000KRAD(Si) with neutron hardness ranging from 1E13n/c.

FRM9140H Datasheet (47.55 KB)

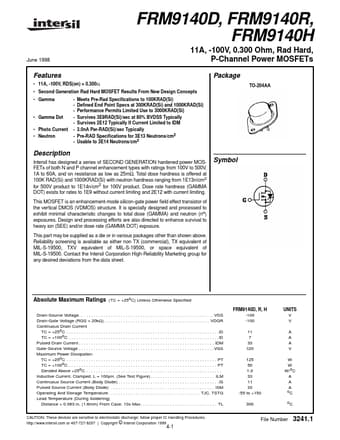

FRM9140H Datasheet Preview — Preview of FRM9140H PDF

Datasheet Details

Part number:

FRM9140H

Manufacturer:

Intersil

File Size:

47.55 KB

Description:

P-channel power mosfet.
