HIP6303 - Microprocessor CORE Voltage Regulator Multi-Phase Buck PWM Controller

Intersil

HIP6303 Datasheet Preview — Preview of HIP6303 PDF

Datasheet Details

Part number	HIP6303
Manufacturer	Intersil
File Size	194.29 KB
Description	Microprocessor CORE Voltage Regulator Multi-Phase Buck PWM Controller
Datasheet	HIP6303-Intersil.pdf

HIP6303 Product details

Description

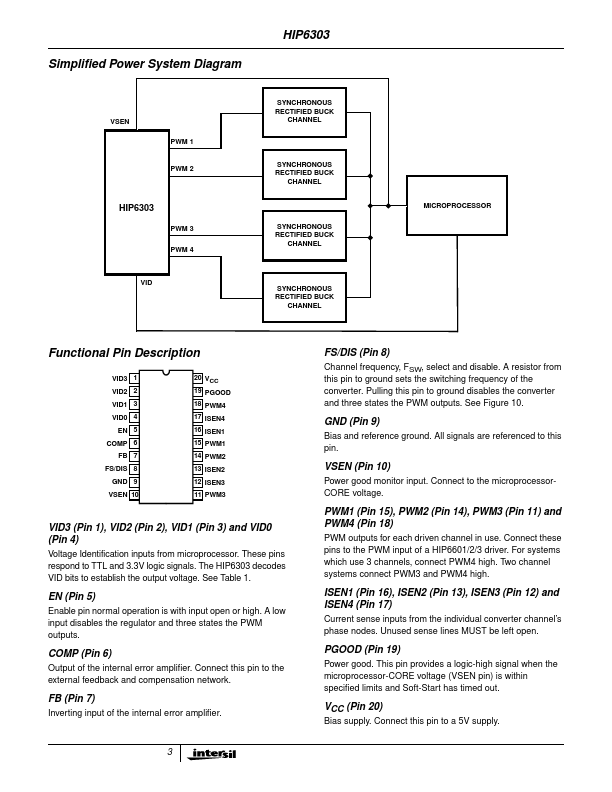

VID3 1 VID2 2 VID1 3 VID0 4 EN 5 COMP 6 FB 7 FS/DIS 8 GND 9 VSEN 10 20 VCC 19 PGOOD 18 PWM4 17 ISEN4 16 ISEN1 15 PWM1 14 PWM2 13 ISEN2 12 ISEN3 11 PWM3 VID3 (Pin 1), VID2 (Pin 2), VID1 (Pin 3) and VID0 (Pin 4) Voltage Identification inputs from microprocessor.These pins respond to TTL and 3.3V logic signals.The HIP6303 decodes VID bits to establish the output voltage.See Table 1. EN (Pin 5) Enable pin normal operation is with input open or high.A low input disables the regulator and three

Features

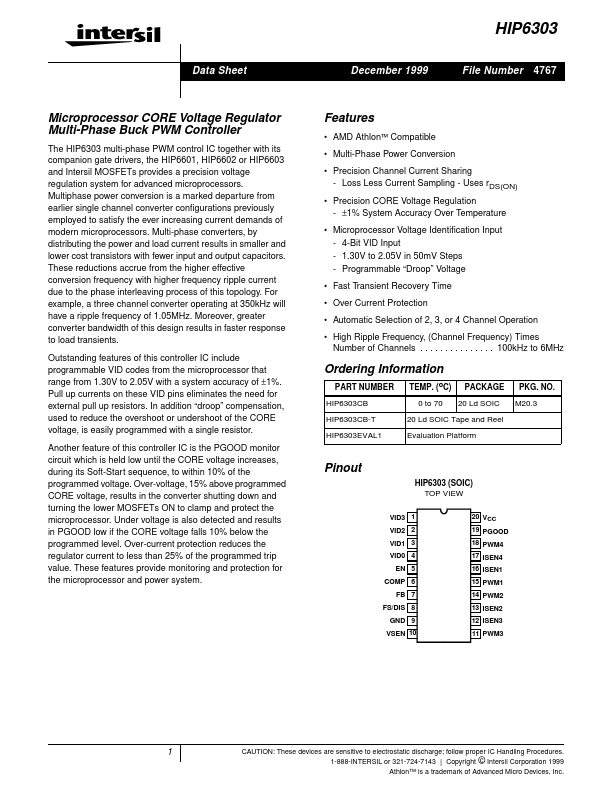

of this controller IC include programmable VID codes from the microprocessor that range from 1.30V to 2.05V with a system accuracy of ±1%. Pull up currents on these VID pins eliminates the need for external pull up resistors. In addition “droop” compensation, used to reduce the overshoot or undershoot of the CORE voltage, is easily programmed with a single resistor. Another feature of this controller IC is the PGOOD monitor circuit which is held low until the CORE voltage increases, during its S.
