HIP6302 Datasheet - Renesas

HIP6302 Microprocessor CORE Voltage Regulator Multi-Phase Buck PWM Controller

DATASHEET HIP6302 Microprocessor CORE Voltage Regulator Multi-Phase Buck PWM Controller FN4766 Rev.3.00 December 27, 2004 The HIP6302 multi-phase PWM control IC together with its companion gate drivers, the HIP6601, HIP6602 or HIP6603 and Intersil MOSFETs provides a precision voltage regulation system for advanced microprocessors. Multiphase power conversion is a marked departure from earlier single phase converter configurations previously employed to satisfy the ever increasing current dema.

HIP6302 Datasheet (749.63 KB)

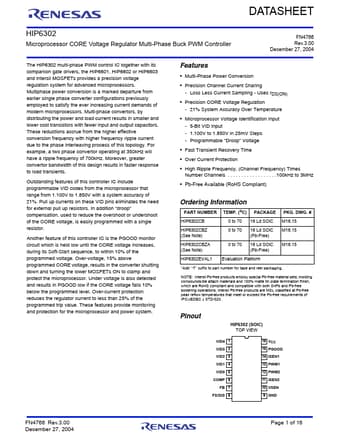

HIP6302 Datasheet Preview — Preview of HIP6302 PDF

Datasheet Details

Part number:

HIP6302

Manufacturer:

Renesas ↗

File Size:

749.63 KB

Description:

Microprocessor core voltage regulator multi-phase buck pwm controller.
