HIP6303 Microprocessor CORE Voltage Regulator Multi-Phase Buck PWM Controller

VID3 1 VID2 2 VID1 3 VID0 4 EN 5 COMP 6 FB 7 FS/DIS 8 GND 9 VSEN 10 20 VCC 19 PGOOD 18 PWM4 17 ISEN4 16 ISEN1 15 PWM1 14 PWM2 13 ISEN2 12 ISEN3 11 PWM3 VID3 (Pin 1), VID2 (Pin 2), VID1 (Pin 3) and VID0 (Pin 4) Voltage Identification inputs from microprocessor. These pins respond to TTL and 3.3V l.

DATASHEET HIP6303 Microprocessor CORE Voltage Regulator Multi-Phase Buck PWM Controller FN4767 Rev.0.00 December 1999 The HIP6303 multi-phase PWM control IC together with its companion gate drivers, the HIP6601, HIP6602 or HIP6603 and Intersil MOSFETs provides a precision voltage regulation system for advanced microprocessors. Multiphase power conversion is a marked departure from earlier single channel converter configurations previously employed to satisfy the ever increasing current demand.

HIP6303 Features

* of this controller IC include programmable VID codes from the microprocessor that range from 1.30V to 2.05V with a system accuracy of 1%. Pull up currents on these VID pins eliminates the need for external pull up resistors. In addition “droop” compensation, used to reduce the overshoot or undersho

HIP6303-Renesas.pdf

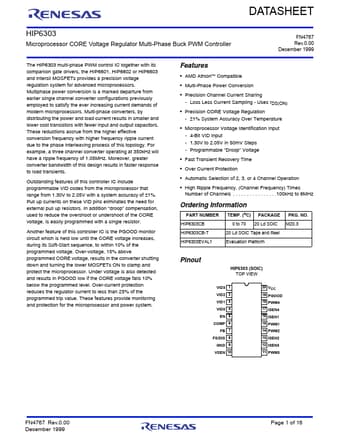

HIP6303 Datasheet Preview — Preview of HIP6303 PDF

Datasheet Details

Part number:

HIP6303

Manufacturer:

Renesas ↗

File Size:

817.07 KB

Description:

Microprocessor core voltage regulator multi-phase buck pwm controller.
