HS-302AEH - Radiation Hardened BiCMOS Dual DPST Analog Switch

Intersil

The HS-302AEH by Intersil is a Radiation Hardened BiCMOS Dual DPST Analog Switch. Below is the official datasheet preview.

📥 Download Datasheet

HS-302AEH Radiation Hardened BiCMOS Dual DPST Analog Switch by Intersil - Datasheet Preview — Official preview page of the **HS-302AEH** Radiation Hardened BiCMOS Dual DPST Analog Switch datasheet (Intersil).

Datasheet Details

Part number	HS-302AEH
Manufacturer	Intersil
File Size	814.67 KB
Description	Radiation Hardened BiCMOS Dual DPST Analog Switch
Datasheet	HS-302AEH-Intersil.pdf

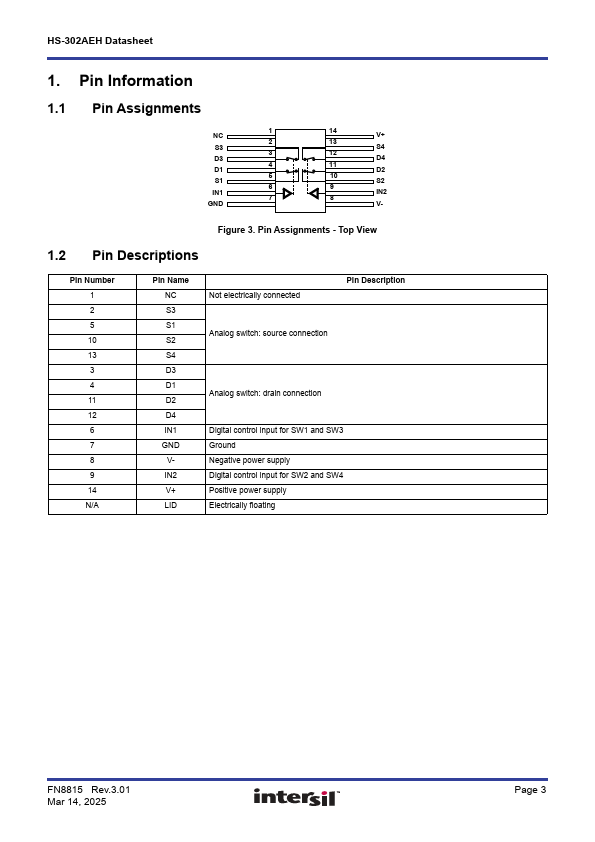

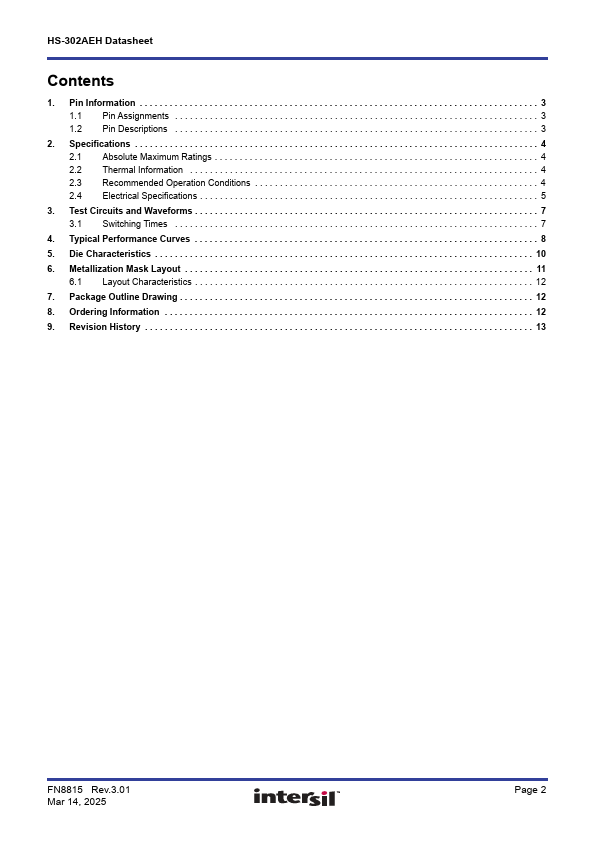

Additional preview pages of the HS-302AEH datasheet.

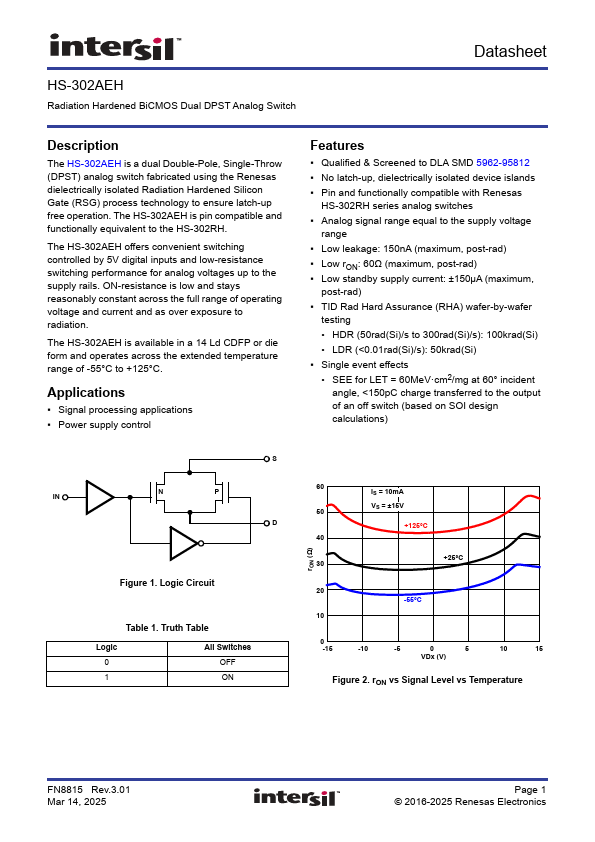

HS-302AEH Product details

Description

The HS-302AEH is a dual Double-Pole, Single-Throw (DPST) analog switch fabricated using the Renesas dielectrically isolated Radiation Hardened Silicon Gate (RSG) process technology to ensure latch-up free operation.

Features

Qualified & Screened to DLA SMD 5962-95812.
No latch-up, dielectrically isolated device islands.
Pin and functionally compatible with Renesas HS-302RH series analog switches.
Analog signal range equal to the supply voltage range.
Low leakage: 150nA (maximum, post-rad).
Low rON: 60Ω (maximum, post-rad).
Low standby supply current: ±150µA (maximum, post-rad).
TID Rad Hard Assurance (RHA) wafer-by-wafer testing.
HDR (50rad(Si)/s to 300rad(Si)/s): 10.
