HS-303AEH Datasheet - Intersil

HS-303AEH Radiation Hardened CMOS Dual SPDT Analog Switch

Datasheet HS-303ARH, HS-303AEH, HS-303BRH, HS-303BEH Radiation Hardened CMOS Dual SPDT Analog Switch The HS-303ARH, HS-303AEH, HS-303BRH, HS-303BEH analog switches are monolithic devices fabricated using the Renesas dielectrically isolated Radiation Hardened Silicon Gate (RSG) process technology to ensure latch-up free operation. They are pinout compatible and functionally equivalent to the HS-303RH, but offer improved 300kRAD(Si) total dose capability. These switches offer low-resistance swit.

HS-303AEH Features

* QML, per MIL-PRF-38535

* Radiation performance ○ Total dose: 3x105rad(Si) ○ SEE: For LET = 60MeV

* cm2/mg at 60° incident angle,

HS-303AEH Datasheet (281.29 KB)

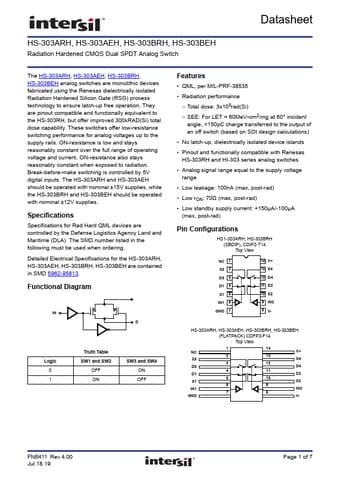

Preview of HS-303AEH PDF
HS-303AEH Datasheet Preview Page 2 HS-303AEH Datasheet Preview Page 3

Datasheet Details

Part number:

HS-303AEH

Manufacturer:

Intersil

File Size:

281.29 KB

Description:

Radiation hardened cmos dual spdt analog switch.
