HS-302RH-T Radiation Hardened CMOS Dual DPST Analog Switch

only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliab.

HS-302RH-T Data Sheet July 1999 File Number 4603.1 Radiation Hardened CMOS Dual DPST Analog Switch Intersil’s Satellite Applications FlowTM (SAF) devices are fully tested and guaranteed to 100kRAD Total Dose. These QML Class T devices are processed to a standard ﬂow intended to meet the cost and shorter lead-time needs of large volume satellite manufacturers, while maintaining a high level of reliability. The HS-302RH-T analog switch is a monolithic device fabricated using Radiation Hardened CM.

HS-302RH-T Features

* QML Class T, Per MIL-PRF-38535

* Radiation Performance - Gamma Dose (γ) 1 x 105 RAD(Si)

* No Latch-Up, Dielectrically Isolated Device Islands

* Pin for Pin Compatible with Intersil HI-302 Series Analog Switches

* Analog Signal Range 15V

* Low Leakage

HS-302RH-T_IntersilCorporation.pdf

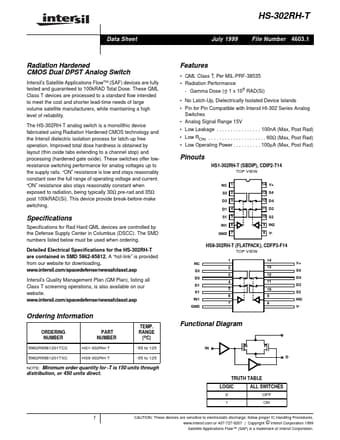

HS-302RH-T Datasheet Preview — Preview of HS-302RH-T PDF

Datasheet Details

Part number:

HS-302RH-T

Manufacturer:

Intersil Corporation

File Size:

26.42 KB

Description:

Radiation hardened cmos dual dpst analog switch.
