HS-4424DRH - Noninverting Power MOSFET Radiation Hardened Driver

Product Overview

Intersil

Datasheet Details

Part number	HS-4424DRH
Manufacturer	Intersil
File Size	678.85 KB
Description	Noninverting Power MOSFET Radiation Hardened Driver
Datasheet	HS-4424DRH Datasheet

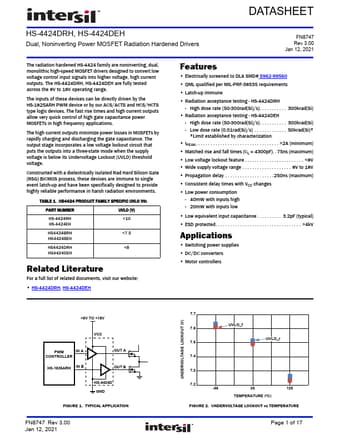

Additional preview pages of the HS-4424DRH datasheet.

Product details

Description

PIN NUMBER 1, 3, 6, 8, 9, 16 2 4 5 7 10, 11 12, 13 14, 15 PIN NAME NC IN A GND A GND B IN B OUT B VCC OUT A VCC EQUIVALENT ESD CIRCUIT NA Circuit 2 NA NA Circuit 2 NA Circuit 1 NA DESCRIPTION No Internal Connection Driver A Input Ground Reference A Ground Reference B Driver B Input Driver B Output Positive Power Supply Driver A Output VCC 2kΩ IN GND FIGURE 3. CIRCUIT 1 GND FIGURE 4. CIRCUIT 2 FN8747 Rev 3.00 Jan 12, 2021 Page 2 of 17 HS-4424DRH, HS-4424DEH Functional Block Diagram VV

Features

Electrically screened to DLA SMD# 5962-99560.
QML qualified per MIL-PRF-38535 requirements.
Latch-up immune.
Radiation acceptance testing - HS-4424DRH - High dose rate (50-300rad(Si)/s).
. 300krad(Si).
Radiation acceptance testing - HS-4424DEH - High dose rate (50-300rad(Si)/s).
. 300krad(Si) - Low dose rate (0.01rad(Si)/s).
. . . 50krad(Si).
Limit established by characterization.
IPE.
