HS-420 - CMOS

Product Overview

NEL

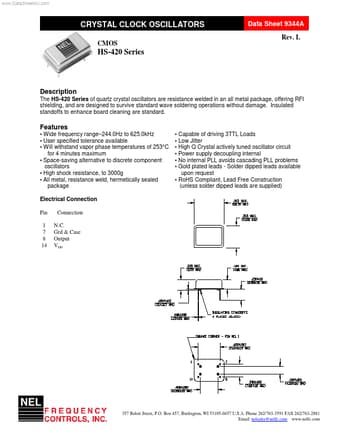

HS-420 CMOS by NEL - Datasheet Preview — Datasheet preview – HS-420

Datasheet Details

Part number	HS-420
Manufacturer	NEL
File Size	283.59 KB
Description	CMOS
Datasheet	HS-420 Datasheet
Additional preview pages of the HS-420 datasheet.

Product details

Description

The HS-420 Series of quartz crystal oscillators are resistance welded in an all metal package, offering RFI shielding, and are designed to survive standard wave soldering operations without damage.

Features

Wide frequency range.
244.0Hz to 625.0kHz.
User specified tolerance available.
Will withstand vapor phase temperatures of 253°C for 4 minutes maximum.
Space-saving alternative to discrete component oscillators.
High shock resistance, to 3000g.
All metal, resistance weld, hermetically sealed package Electrical Connection Pin 1 7 8 14 Connection N. C. Grd & Case Output VDD.
Capable of driving 3TTL Loads.
Low Jitter.
