HS-1520

TTL

HS-1520 Features

* Wide frequency range

* 0.5MHz to 85.0MHz

* User specified tolerance available

* Will withstand vapor phase temperatures of 253°C for 4 minutes maximum

* Space-saving alternative to discrete component oscillators

* High shock resistance, to 3000g

HS-1520 General Description

The HS-1520 Series of quartz crystal oscillators provide enable/disable 3-state TTL compatible signals for bus connected systems. Supplying Pin 1 of the HS-1520 units with a logic “1" enables its output on Pin 8. In the disabled mode, Pin 8 presents a high impedance to the load. All units are resist.

HS-1520 Datasheet (283.52 KB)

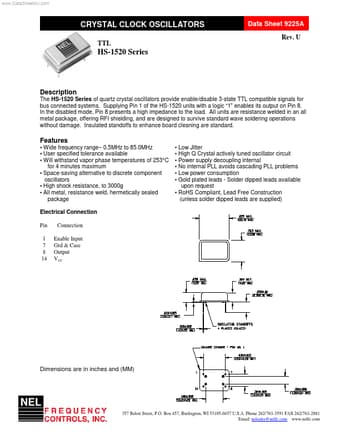

Preview of HS-1520 PDF

Datasheet Details

Part number:

HS-1520

Manufacturer:

NEL

File Size:

283.52 KB

Description:

Ttl.
