HS-1200

(HS-1200 / HS-1210) CRYSTAL CLOCK OSCILLATORS

HS-1200 Features

* Wide frequency range

* 0.5MHz to 36MHz

* User specified tolerance available

* Will withstand vapor phase temperatures of 253°C for 4 minutes maximum

* Space-saving alternative to discrete component oscillators

* High shock resistance, to 3000g

HS-1200 General Description

The HS-1200/1210 Series of quartz crystal oscillators provide enable/disable 3-state TTL compatible signals for bus connected systems. Supplying Pin 1 of the HS-1200 units with a logic “0" enables the output on Pin 8. Alternately, supplying pin 1 of the HS-1210 units with a logic “1" enables its Pin.

HS-1200 Datasheet (386.48 KB)

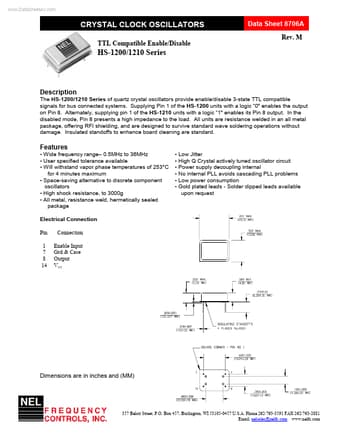

Preview of HS-1200 PDF

Datasheet Details

Part number:

HS-1200

Manufacturer:

NEL

File Size:

386.48 KB

Description:

(hs-1200 / hs-1210) crystal clock oscillators.
