HS-1212RH Radiation Hardened/ Dual/ High Speed Low Power/ Video Closed Loop Buffer

HS-1212RH Data Sheet August 1999 File Number 4228.1 Radiation Hardened, Dual, High Speed Low Power, Video Closed Loop Buffer The HS-1212RH is a dual closed loop buffer featuring user programmable gain and high speed performance. Manufactured on Intersil’s proprietary complementary bipolar UHF-1 (DI bonded wafer) process, this device offers wide -3dB bandwidth of 340MHz, very fast slew rate, excellent gain flatness and high output current. These devices are QML approved and are processed and scre.

HS-1212RH Features

* Electrically Screened to SMD # 5962-96831

* QML Qualified per MIL-PRF-38535 Requirements

* MIL-PRF-38535 Class V Compliant

* User Programmable For Closed-Loop Gains of +1, -1 or +2 Without Use of External Resistors

* Standard Operational Amplifier Pinout

HS-1212RH_IntersilCorporation.pdf

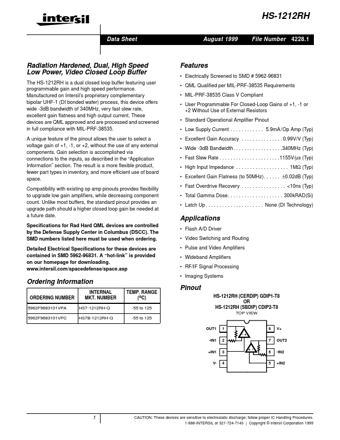

Preview of HS-1212RH PDF
HS-1212RH Datasheet Preview Page 2 HS-1212RH Datasheet Preview Page 3

Datasheet Details

Part number:

HS-1212RH

Manufacturer:

Intersil Corporation

File Size:

107.21 KB

Description:

Radiation hardened/ dual/ high speed low power/ video closed loop buffer.
