HS-1530 Datasheet - NEL Frequency Controls

(HS-1530 Series) Crystal Clock Oscillators

HS-1530 Features

* Wide frequency range

* 80.0MHz to 140.0MHz

* User specified tolerance available

* Will withstand vapor phase temperatures of 253°C for 4 minutes maximum

* Space-saving alternative to discrete component oscillators

* High shock resistance, to 3000g

HS-1530 General Description

The HS-1520 Series of quartz crystal oscillators provide enable/disable 3-state TTL compatible signals for bus connected systems. Supplying Pin 1 of the HS-1520 units with a logic “1" enables its output on Pin 8. In the disabled mode, Pin 8 presents a high impedance to the load. All units are resist.

HS-1530 Datasheet (259.39 KB)

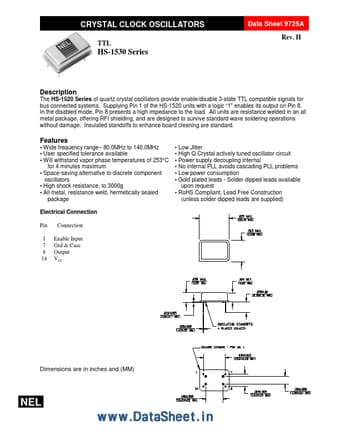

Preview of HS-1530 PDF

Datasheet Details

Part number:

HS-1530

Manufacturer:

NEL Frequency Controls

File Size:

259.39 KB

Description:

(hs-1530 series) crystal clock oscillators.
