HS-4424BRH - Non-Inverting Power MOSFET Drivers

Product Overview

Intersil Corporation

📥 Download Datasheet

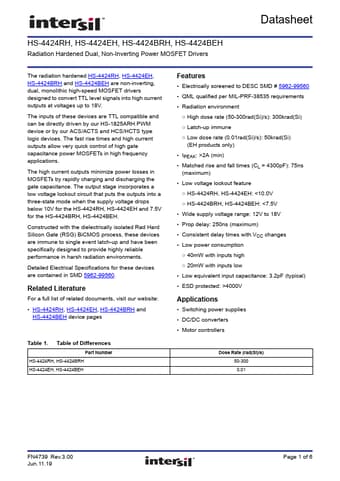

HS-4424BRH Non-Inverting Power MOSFET Drivers by Intersil Corporation - Datasheet Preview — Datasheet preview – HS-4424BRH

Datasheet Details

Part number	HS-4424BRH
Manufacturer	Intersil Corporation
File Size	249.92 KB
Description	Non-Inverting Power MOSFET Drivers
Datasheet	HS-4424BRH Datasheet
Additional preview pages of the HS-4424BRH datasheet.

Product details

Features

Electrically screened to DESC SMD # 5962-99560.
QML qualified per MIL-PRF-38535 requirements.
Radiation environment ○ High dose rate (50-300rad(Si)/s): 300krad(Si) ○ Latch-up immune ○ Low dose rate (0.01rad(Si)/s): 50krad(Si) (EH products only).
IPEAK: >2A (min).
Matched rise and fall times (CL = 4300pF): 75ns (maximum).
Low voltage lockout feature ○ HS-4424RH, HS-4424EH:.
