ISL6558 - Multi-Purpose Precision Multi-Phase PWM Controller

ISL6558 Description

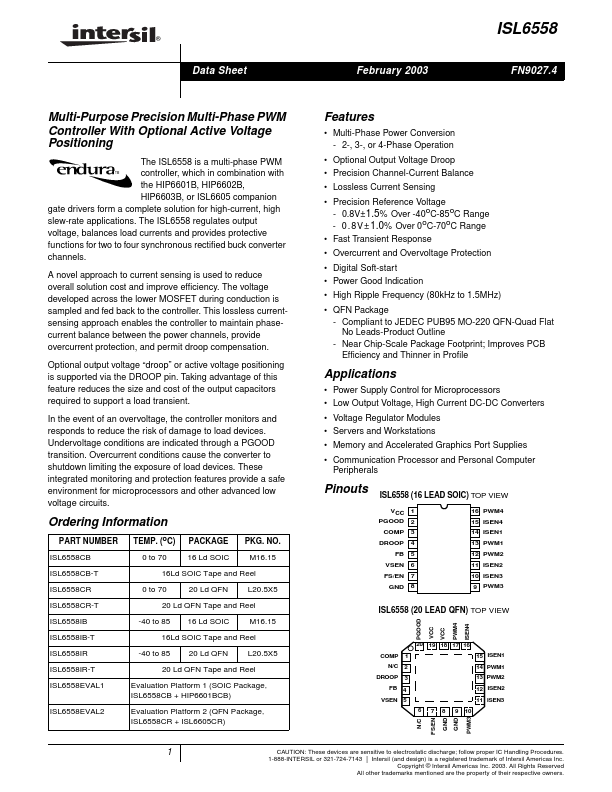

® Data Sheet February 2003 ISL6558 FN9027.4 Multi-Purpose Precision Multi-Phase PWM Controller With Optional Active Voltage Positioning The ISL655.
NOTE: Pin numbers refer to the SOIC package.

ISL6558 Features

* provide a safe environment for microprocessors and other advanced low voltage circuits. Ordering Information PART NUMBER TEMP. (oC) PACKAGE PKG. NO. ISL6558CB 0 to 70 16 Ld SOIC M16.15 ISL6558CB-T 16Ld SOIC Tape and Reel ISL6558CR 0 to 70 20 Ld QFN L20.5X5 ISL6558CR-T 20 Ld QFN Tape and

ISL6558 Applications

* The ISL6558 regulates output voltage, balances load currents and provides protective functions for two to four synchronous rectified buck converter channels. A novel approach to current sensing is used to reduce overall solution cost and improve efficiency. The voltage developed across the lower M

📥 Download Datasheet

Preview of ISL6558 PDF

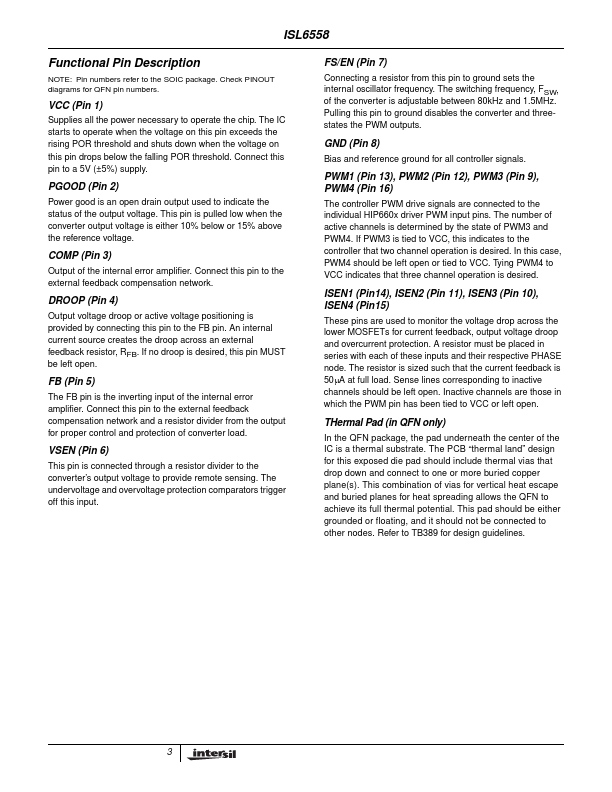

datasheet Preview Page 2 datasheet Preview Page 3
