ISL6556A Datasheet - Renesas

ISL6556A Optimized Multiphase PWM Controller

ISL6556A NOT RECOMMENDED FOR NEW DESIGNS NO RECOMMENDED REPLACEMENT contact our Technical Support Center at 1-888-INTERSIL or www.intersil.com/tsc Optimized Multiphase PWM Controller with 6-Bit DAC for VR10.X Application DATASHEET FN9096 Rev 3.00 December 29, 2004 The ISL6556A controls microprocessor core voltage regulation by driving up to 4 synchronous-rectified buck channels in parallel. Multi-phase buck converter architecture uses interleaved timing to multiply channel ripple frequency a.

ISL6556A Datasheet (1.11 MB)

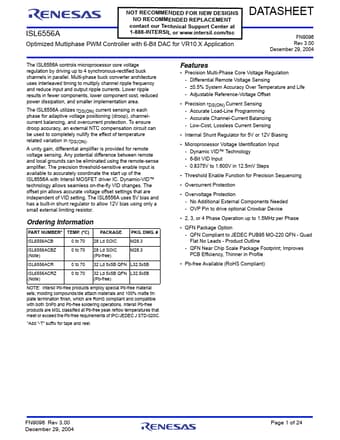

Preview of ISL6556A PDF

Datasheet Details

Part number:

ISL6556A

Manufacturer:

Renesas ↗

File Size:

1.11 MB

Description:

Optimized multiphase pwm controller.
