MD82C237B Datasheet - Intersil

MD82C237B - CMOS High Performance Programmable DMA Controller

The 82C237 is a modified version of the 82C37A.

The 82C237 is fully software and pin for pin compatible with the 82C37A but provides an additional mode for 16-bit DMA transfers, as well as enhanced speed.

Each channel may be individually programmed for 8-bit or 16-bit data transfers.

The 82C237 contr

MD82C237B Features

* for flexible operation. The 82C237 is designed to be used with an external address latch, such as the 82C82, to demultiplex the most significant 8 bits of address. An additional latch is required to temporarily store the most significant 8 bits of data if 16-bit memory-to-memory transfers are desired.

MD82C237B_IntersilCorporation.pdf

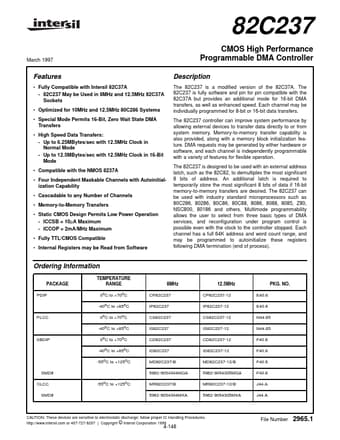

Preview of MD82C237B PDF
MD82C237B Datasheet Preview Page 2 MD82C237B Datasheet Preview Page 3

Datasheet Details

Part number:

MD82C237B

Manufacturer:

Intersil

File Size:

158.77 KB

Description:

Cmos high performance programmable dma controller.
