VLA301-122R ISOLATED DC-DC CONVERTER

HYBRID IC VLA301-122R ISOLATED TYPE DC-DC CONVERTER .
The VLA301-122R is a DC-DC converter.

VLA301-122R-IsahayaElectronics.pdf

VLA301-122R Datasheet Preview — Preview of VLA301-122R PDF

Datasheet Details

Part number:

VLA301-122R

Manufacturer:

Isahaya Electronics

File Size:

117.28 KB

Description:

ISOLATED DC-DC CONVERTER

Features

* Input voltage range:80 to 220V DC
* Output: +12V, 200mA (output power : 2.4W)
* Thin-profile and lightweight design
* Isolation between input and output : 2000Vrms, 1min

Applications

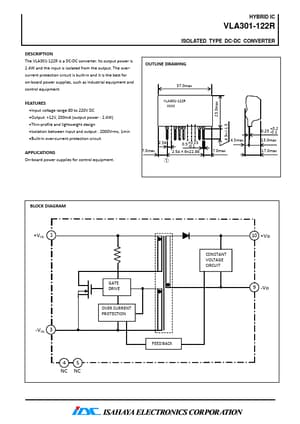

* On-board power supplies for control equipment. VLA301-122R XXXX 2.54 0.5 +0.15 -0.1 7.0max 2.54×9=22.86 ① 23.0max 4.5+/-1.5 4.5max 7.0max 0.25 +0.2 -0.1 13.0max 17.0max BLOCK DIAGRAM +VIN 1 -VIN 3 45 NC NC GATE DRIVE OVER CURRENT PROTECTION FEED BACK CONSTANT VOLTAGE CIRCUIT 10 +
