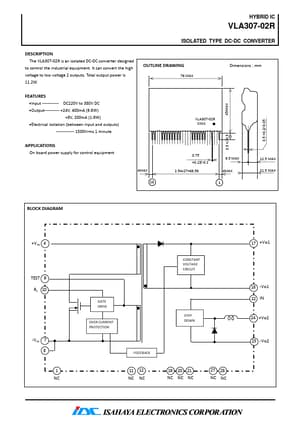

datasheet Preview Page 1 from Datasheet4u.com

VLA307-02R ISOLATED DC-DC CONVERTER

HYBRID IC VLA307-02R .
The VLA307-02R is an isolated DC-DC converter designed to control the industrial equipment.

VLA307-02R-IsahayaElectronics.pdf

VLA307-02R Datasheet Preview — Preview of VLA307-02R PDF

Datasheet Details

Part number:

VLA307-02R

Manufacturer:

Isahaya Electronics

File Size:

126.79 KB

Description:

ISOLATED DC-DC CONVERTER

Features

* Input
* DC220V to 380V DC
* Output
* - +24V, 400mA (9.6W) +8V, 200mA (1.6W)
* Electrical isolation (between input and outputs)
* -

Applications

* On board power supply for control equipment 4MAX 28 0.75 +0.15/-0.1 2.54x27=68.58 9.5 MAX 4MAX 1 12.5 MAX 21.5 MAX BLOCK DIAGRAM +VIN 4 TEST 9 RS 10 -VIN 7 8 1 NC CONSTANT VOLTAGE CIRCUIT GATE DRIVE OVER CURRENT PROTECTION STEP DOWN FEED BACK 11 12 NC NC 19 20 21 NC NC NC 27 28 NC NC 17
