VLA303A-01R IPM POWER SUPPLY UNIT

HYBRID IC VLA303A-01R .
The VLA303A-01R is an isolated DC-DC converter designed to drive the IPM.

VLA303A-01R-IsahayaElectronics.pdf

VLA303A-01R Datasheet Preview — Preview of VLA303A-01R PDF

Datasheet Details

Part number:

VLA303A-01R

Manufacturer:

Isahaya Electronics

File Size:

263.90 KB

Description:

IPM POWER SUPPLY UNIT

Features

* Input
* 140V to 380V DC
* Output
* -+15V, 50mA x3 +15V, 150mA x1 +12V, 400mA x1 +5V, 300mA x1
* Electrical isolation (between input and outputs)

Applications

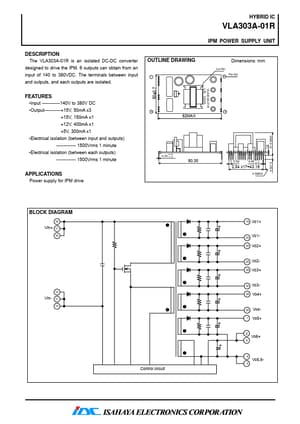

* Power supply for IPM drive 18 82MAX 0.25 +0.20 -0.10 80.35 19 2.54 0.45+-00..1100 2.54 x17=43.18 3.5MAX 4.5±1.5 BLOCK DIAGRAM 18 Vin+ 17 16 12 Vin- 11 10 Control circuit 19 Vo1+ 20 Vo124 Vo2+ 25 Vo229 Vo3+ 30 Vo334 Vo4+ 35 Vo41 Vo5+ ２ Vo6+ ３ 4 Vo5,6- 5 HYBRID IC VLA303A-01R IPM POWER S
