iT4021D

T-type flip flop

iT4021D Features

* Data rate range: 20 NRZ (12.5 RZ) Gb/s Maximum clock frequency as clock divider: 14 GHz 900 mVpp typical single-ended output Input sensitivity: Single ended input >250 mV Jitter transfer RMS:

iT4021D General Description

The iT4021D is a high-speed T-type flip-flop fabricated using 1µm HBT GaAs technology. The T flip-flop consists of a master-slave latch, closed-in feedback, and is designed using an ECL topology in order to guarantee high-speed operation. The data input may be either AC or DC coupled, the output is .

iT4021D Datasheet (444.41 KB)

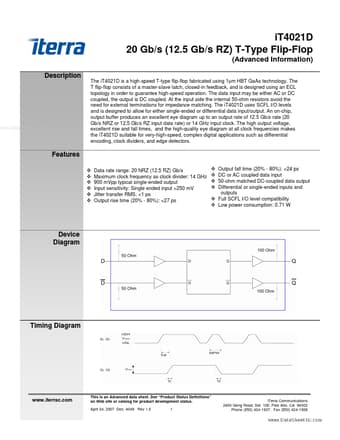

Preview of iT4021D PDF

Datasheet Details

Part number:

iT4021D

Manufacturer:

Iterra

File Size:

444.41 KB

Description:

T-type flip flop.
