iT4005D - 12-Gb/s GaAs MMIC D flip-flop

iT4005D Description

iT4005D 12.5 Gb/s GaAs MMIC D Flip-Flop (Advanced Information) .
The iT4005D is a high-speed D-type flip flop fabricated using 1-μm HBT GaAs technology.

iT4005D Features

* ™ ™ ™ ™ ™ ™ 2-13 GHz clock frequency range 900 mVpp single ended output dynamic Output rise time (20%-80%): 25 ps Output fall time (20%-80%): 24 ps DC coupled clock input DC coupled data input ™ 50 ohm matched DC-coupled data output ™ Differential or single-ended inputs ™ Low power consumption: 1 W

iT4005D Applications

* such as decision circuits, waveform shaping, register implementation, and timing adjustment. The device consists of a master-slave latch designed using an ECL topology guarantee highspeed operation. The data and clock inputs and data outputs are DC coupled. At the data input port, the iT4005D tolera

📥 Download Datasheet

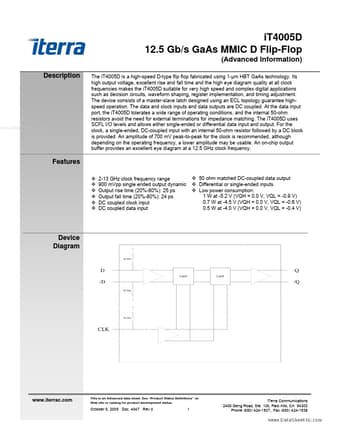

Preview of iT4005D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
iT4005D
Manufacturer
Iterra
File Size
1.47 MB
Datasheet
iT4005D_Iterra.pdf
Description
12-Gb/s GaAs MMIC D flip-flop
